Ball Valves Check Valve Strainer Gate Valve Globe Valve Other

2PC PN63 Stainless Steel Threaded Ball Valve

Material
SS304 (CF8/1.4301/SCS13) /SS316 (CF8M/1.4401/SCS14) /WCB
Pressure
1000WOG/1000PSI/PN63
Size
1/4”-4”/DN8-DN100
Type
Full Port/Full Bore
Connection
BSPP/BSPT/DIN259/DIN2999/NPT
Payment
TT/LC
Port
Ningbo/Shanghai
Get Inquiry Download
Product Description

Product Details:

Material: SS304(CF8/1.4301), SS316(CF8M/1.4401), WCB, SS201

Size: 1/4''~4'' ( DN8~DN100mm)

Connection Form: Thread

Working Pressure: 1000WOG( PN64/6.4 MPa)

Connection Ends: NPT/BSP/BSPT/DIN259/DIN2999

Working Temp: -20~300ºC

Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid

Application: Industrial Usage, Water Industrial Usage, Household Usage

Port: Full Port

Driving Mode: Manual

Handle Sleeve Color: Depend on Your Required

Locking: Option

Shipping Port: Ningbo / Shanghai, China

Production Capacity: 10000-30000pcs/month



Product Description:

The 2PC PN63 Stainless Steel Threaded Ball Valve tackles corrosion and high-pressure leakage in industrial environments. Constructed from SS304 (CF8/1.4301), SS316 (CF8M/1.4401), WCB, or SS201, it offers superior resistance to rust and chemical attack, ideal for chemical processing, water treatment, and marine applications. Its two-piece design enables easy maintenance and quick disassembly, reducing downtime in critical systems. With a PN63 rating (1000WOG/6.4MPa), it withstands tough pressure conditions, while versatile thread options (NPT/BSP/BSPT/DIN259/DIN2999) and sizes from 1/4" to 4" (DN8-DN100) ensure seamless integration with global piping systems. The full-bore floating ball design minimizes flow resistance and provides bubble-tight sealing, delivering reliable, efficient flow control in harsh environments.

Competitive Advantage:

1. Our products is guaranteed within 12 months after delivery.

2. We pay much attention to technology renovation, process improvement, structure optimization and quality improvement.

3. We have excellent after-sales service system, providing timely and optimal service, which help you to win the market.

4. We have convenient shipping sea port, and standard exporting carton boxes & plywood cases.

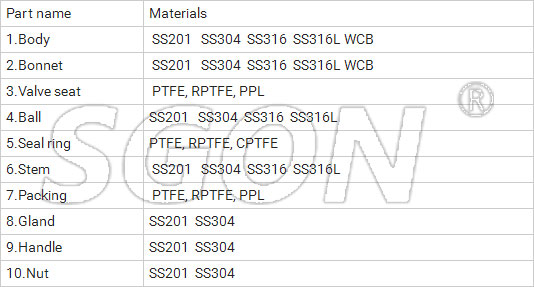

Main Parts and Material

Shipment&Payment

Recommended products
Frequently Asked Question

Q1: Where are the main markets for your products?

A1: We hope to make business with companies from all over the world. And for now, our valves and fittings have been exported to especially in Europe and America, Middle East, Southeast Asia, etc.

Q2: Is the requirement for MOQ?

For some small size, like 1/4''-1/2''(DN8-DN15), it request the MOQ is 500pcs for each size. Generally speaking, it depends on your order.

A3: How can you guarantee the quality of products?

Q3: Firstly, we have the numerical control device to manufacture products accurately. Then our quality inspectors will test products one by one to make sure every valve or fitting we sell is qualified.
