What Is 1-Piece Threaded Ball Valve?

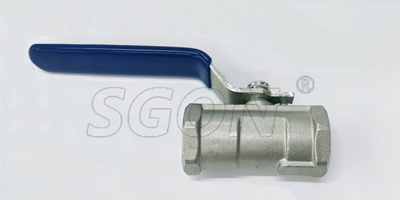

A 1-piece threaded ball valve is a compact, single-body plumbing component designed to control the flow of liquids or gases in pipelines. Constructed from a single casting or machined piece, it features an integrated threaded inlet and outlet, eliminating the need for separate body sections and reducing potential leak points compared to multi-piece designs. The core mechanism includes a hollow spherical disc with a bore that aligns with the flow path when the valve is open, and blocks it when rotated 90 degrees via a handle or actuator.

Key Features and Applications

This valve type is prized for its simplicity, affordability, and ease of installation, making it ideal for low-pressure residential, commercial, and light industrial systems. Common uses include water supply lines, irrigation systems, and air compressor setups. The threaded connections (typically NPT or BSP) allow for quick assembly without welding or flanging, though they are less suitable for high-pressure or large-diameter applications where structural integrity demands multi-piece designs.

Valve Selection and Maintenance Tips

1. Choosing the Right Ball Valve Type

When selecting a ball valve, consider factors like:

• Pressure Rating: 1-piece valves usually handle up to 1,000 PSI; higher pressures require 2-piece or 3-piece designs with reinforced bodies.
• Material Compatibility: Ensure the valve's body (common materials: brass, stainless steel, PVC) and seal (PTFE, rubber) resist corrosion from the fluid medium.
• Operation Mechanism: Manual lever handles suit most residential needs, while automated systems may require electric or pneumatic actuators.

2. Prolonging Valve Lifespan

Regular maintenance can prevent operational issues:

• Lubrication: Apply valve grease to the stem and ball periodically to ensure smooth rotation, especially in infrequently used valves.
• Leak Inspection: Check threaded connections for loose fittings or worn seals—replace O-rings or packing if signs of leakage appear.
• Debris Removal: Flush the pipeline before installation to prevent particle buildup that could scratch the ball or seat, compromising the seal.

In summary, the 1-piece threaded ball valve excels in simplicity and cost-effectiveness for moderate-duty applications. Proper selection based on system requirements and routine maintenance are key to maximizing its performance and longevity.
